5G Small Cell Connectivity Guide: Integrating M12, M8, and FDDI Circular Connectors
As 5G network rollouts accelerate, base station architecture is rapidly shifting from traditional macro sites to highly dense, micro-level deployments. 5G Small Cells (Micro Base Stations) are critical for resolving urban capacity crunches, delivering deep indoor coverage, and eliminating dead zones. Behind these compact telecommunication systems, industrial circular connectors act as the core "gateway" for power and high-speed data transmission, directly impacting network uptime.
To survive unpredictable outdoor elements and meet strict space constraints, Shenzhen STA Electronics Co., Ltd. (STA) has launched an integrated 5G Small Cell connectivity portfolio based on Euro-standard M12 A-Coded (4-Pin/12-Pin), M8 A-Coded (3-Pin), and FDDI single-mode single-core fiber optic connectors.
Core Technical Specifications & Operational Benefits
4 Critical Engineering Application Scenarios in 5G Infrastructure
1. 5G Fronthaul & Midhaul Backbone (High-Speed Fiber Transport)
- Target Hardware: STA C13 Series FDDI Single-Mode Fiber Optic Connector
C13T-SCBF/F
- Engineering Impact: The crushing data loads of 5G micro stations make fiber optics the only viable pipeline for Fronthaul transport. The C13 series seamlessly fuses the extreme bandwidth of single-mode fiber with the rugged durability of an industrial circular shell. This protects delicate glass cores from outdoor temperature shifts, mechanical pulling, and environmental moisture, ensuring zero db-loss signal integrity.
2. PoE Supply & Sensor Signal Aggregation (Power + Control Layer)

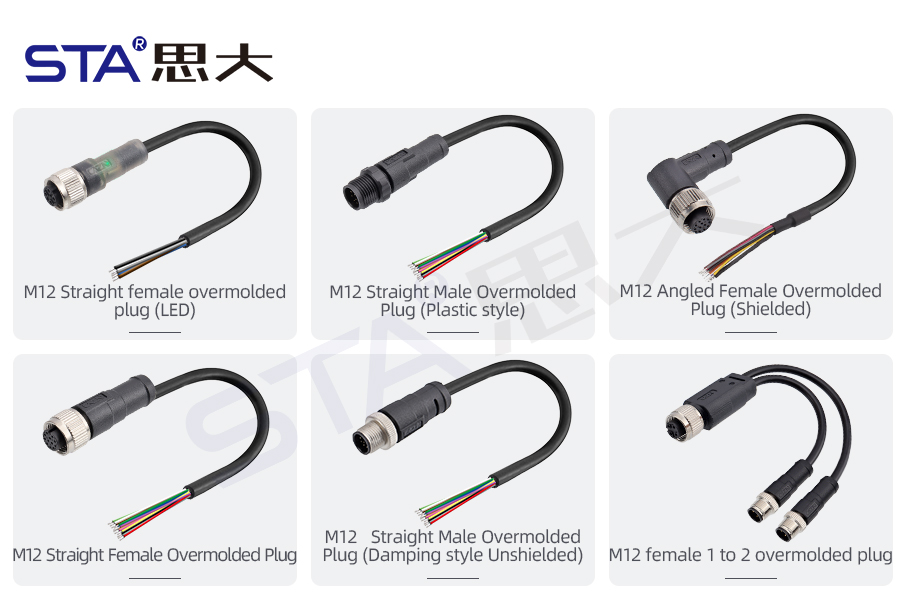

- Target Hardware: 4-Pin A-Coded M12 Circular Connector
M12A-04PFM-GW12
- Engineering Impact: Small cells require constant health and telemetry reporting (internal temperature, humidity, chassis intrusion). The 4-Pin A-Coded M12 standard fully supports Power over Ethernet (PoE) wiring layouts. Engineering teams can route DC power and monitoring signals through a single IP67 line, drastically cutting chassis port cutouts and saving assembly labor.
3. Smart Antenna Arrays & High-Density I/O Routing
- Target Hardware: 12-Pin A-Coded M12 High-Density Plug
M12A-12PFM-GW12
- Engineering Impact: For Beamforming and Massive MIMO (Multiple-Input Multiple-Output) smart antenna adjustments, a large density of pin lines is required within a confined space. STA's 12-pin M12 delivers a high-density, multi-channel matrix inside a miniature circular frame, replacing bulky terminal blocks while establishing heavy-duty electromagnetic shielding.
4. Space-Constrained Micro-Sensors & External LED Diagnostics
- Target Hardware: 3-Pin A-Coded M8 Ultra-Compact Connector
M8A-03PBM-GW8
- Engineering Impact: The inner spatial design of a 5G microstation leaves zero room for error. For secondary components—such as external diagnostic LEDs, fan tachometers, or safety limit switches—the M8 3-pin series serves as a lightweight yet industrial-grade signal tap that preserves watertight sealing without adding bulk.
Outdoor telecom hardware demands rugged resilience against salt spray, wind loads, and thermal shock. Shenzhen STA Electronics Co., Ltd. brings 20 years of validated connector R&D expertise. Our manufacturing plants are ISO9001 certified, and our product catalog holds global compliance credentials from UL, cUL, CSA, VDE, TUV, and CQC.
Equipped with in-house state-of-the-art labs, every batch of M12, M8, and FDDI fiber hardware is tested rigorously to match IEC61984, IEC60947, and UL1059 compliance markers. This engineering rigor guarantees flawless field longevity for 5G network equipment worldwide.
Q1: Why should telecom operators deploy FDDI circular fiber connectors instead of standard LC/SC patch cords for outdoor small cells?
A1: Standard indoor patch cords (LC/SC) lack structural armor and easily break or experience high insertion loss due to wind-induced cable whipping, UV degradation, or bird damage.
STA's C13 series FDDI circular fiber connectors lock premium ceramic ferrule optics inside a heavy-duty, IP67/IP68 metal circular shell. This grants the assembly military-grade tensile strength and impact protection, while retaining the high-bandwidth capabilities of single-mode fiber required for 5G Fronthaul.
Q2: How do STA's M12 A-Coded connectors handle high-frequency
RF interference within a 5G small cell?
A2: 5G micro base stations operate in highly saturated radio-frequency (RF) environments, making control signals vulnerable to cross-talk. STA's M12A-04PFM and M12A-12PFM connectors are engineered with specialized 360-degree full metal shielding rings. This structural shielding creates a continuous ground-path enclosure that isolates low-speed PoE data and antenna control loops from high-frequency microwave emissions, eliminating data dropouts
