Discover how STA M8 connectors secure industrial robot safety circuits. 4-pin A/D coded, IP67 waterproof, and anti-vibration for PL d / Cat.3 compliance.
In industrial robotics, reliability is the baseline, but safety is the lifeline. With their compact size, IP67 waterproof/dustproof rating, vibration-resistant thread-locking, and excellent EMI immunity, STA M8 Connectors are specifically engineered for low-voltage weak currents and small signal transmissions within robot safety loops. Today, STA M8 circular connectors have become the standard interconnect hardware for safeguarding automated robotic workstations.

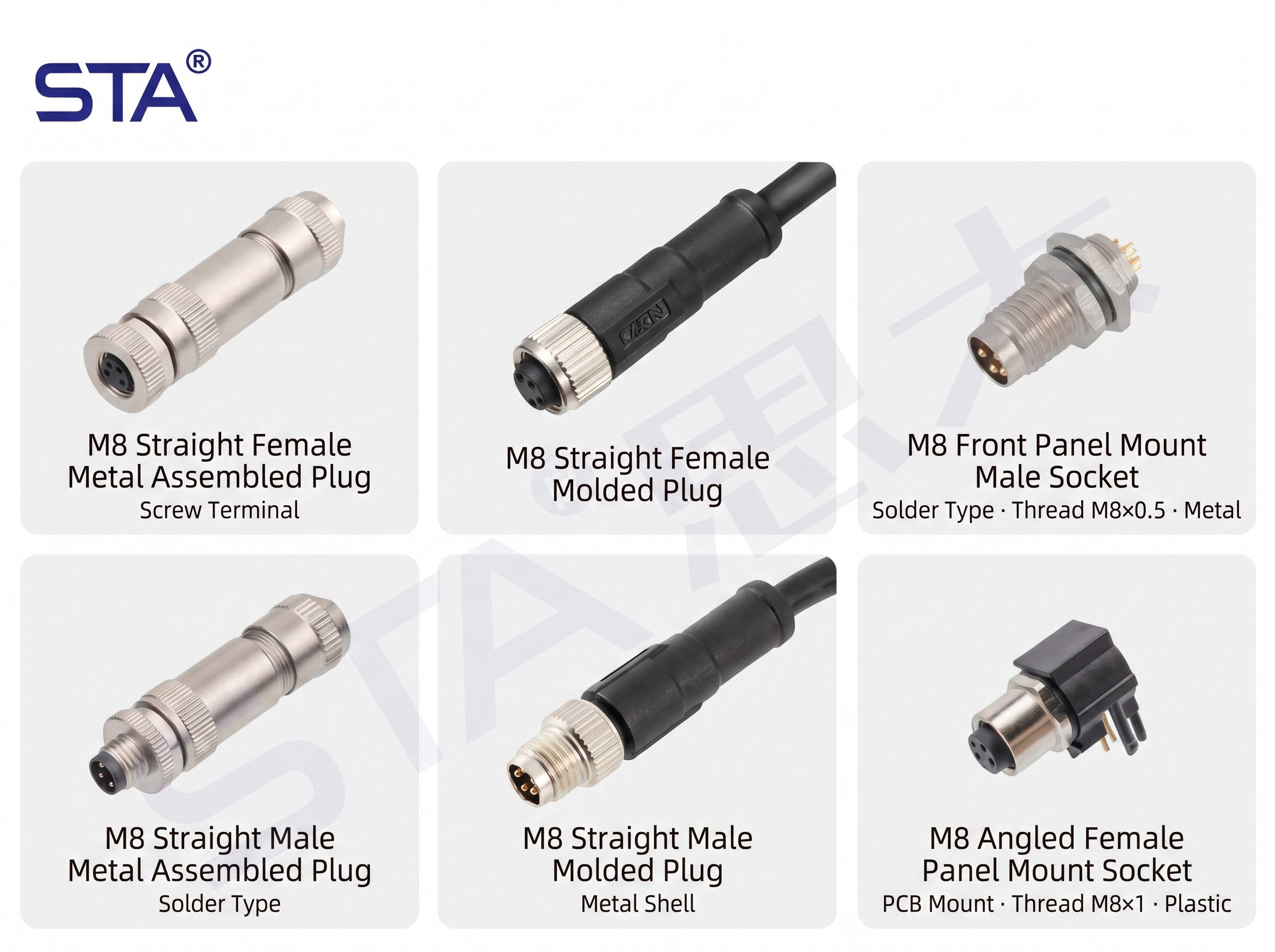

STA M8 Aerospace & Sensor Connector Product Matrix
| Part Number |
Product Description |
Key Features & Performance |
Certifications |
| M8D-04PAM-PW5 |
M8 Straight Male Plastic Field-Assembly Plug, 4-Pin, D-Coded, Solder Type, Cable OD: 5.0mm |
Thread-locking mechanism; ≥500 mating cycles; Gold-plated contacts with ultra-low resistance & anti-oxidation; Max IP67 rating; Operating Temp: -40°C to +85°C for extreme environments. |
CE, RoHS, UL |
| M8-S4D-GWBM8 |
M8 Front Panel Mount Female Metal Receptacle, 4-Pin, D-Coded, Solder Type, Thread: M8*0.5 |
Rugged metal shell, perfect for EMI/RFI shielding in robotic control boxes and industrial enclosures. |
CE, RoHS, UL |
| M8A-04PAM-GM-1000VS |
M8 Shielded Straight Male Overmolded Plug, 4-Pin, A-Coded |
Overmolded cable assembly with integrated 360° shielding layer; Prevents signal crosstalk in heavy-noise welding cells. |
CE, RoHS, UL |
| M8A-04PFF-GW12 |
M8 Rear Panel Mount Female Metal Receptacle, 4-Pin, A-Coded, Solder Type, Thread: M12*1 |
Rear-lock configuration; Exceptional structural stability against continuous mechanical vibrations. |
CE, RoHS, UL |
4 Critical Safety Application Scenes in Robotic Workcells
1. Safety Doors, Interlocks & E-Stop Buttons
- Application: Safety interlocking doors, electronic door switches, safety light curtains, and emergency stop buttons on teach pendants or fence pillars.
- M8 Role: Transmits the NC (Normally Closed) loop signals. If a safety door opens or an E-stop is pressed, the M8 interface guarantees instantaneous signal delivery to cut off the robot's servo enable power, satisfying strict PL d / Cat.3 functional safety architectures.
2. Safety Laser Scanners & Anti-Collision Radars
- Application: Area monitoring scanners and safety radars for Collaborative Robots (Cobots), AGVs, and Automated Guided Vehicles.
- M8 Role: Handles low-voltage power supply, safety zone warning inputs, and system fault diagnostic feeds. The reliable M8 connection prevents false alarms or failure-to-trip hazards caused by loose wiring.
3. Perimeter Protection & Infrared Light Barriers
- Application: Outward-facing infrared barriers and intrusion detection sensors around robotic welding or palletizing cells.
- M8 Role: The 4-pin M8 layout routes sensor power and alarm outputs into the safety controller. Its heavy-duty sealing withstands ambient workshop oil, dust, and moisture, eliminating contact failure over long-term operations.
4. Overtravel Safety Limits & Mechanical Collision Sensors
- Application: Robot axis origin limits, overtravel boundary switches, and robotic arm end-effector collision/overload sensors.
- M8 Role: Feeds real-time physical positioning data back to the core safety loop, keeping the arm's path within pre-programmed safe operational envelopes.
Why Engineering Teams Partner with STA Connectors?
Industrial environments are notoriously brutal on electronic components—continuous vibration, constant chemical/oil exposure, and high electromagnetic noise from servo motors. STA M8 connectors solve these challenges with gold-plated contact technology, ensuring reliable signal transmission across more than 500 mating cycles.
As a professional manufacturer with two decades of expertise,
Shenzhen STA Electronics Co., Ltd. operates ISO9001 and
IATF 16949 certified production lines. Our internal labs test products against international standards including
IEC60947, GB13140, and UL1059.
By controlling the entire cycle from initial R&D and mold making to final automated assembly, STA delivers highly competitive, fully customizable M8 interconnect solutions with rapid lead times. We serve as a trusted, cost-effective global alternative to legacy Western brands.
Conclusion
In the era of smart manufacturing, human-robot collaboration demands fail-safe connectivity. STA M8 connectors provide the necessary physical and electrical integrity to keep your robotic safety systems active 24/7.
FAQ: Quick Guide on M8 Connectors for Robotics
Q1: What are the main types of M8 connectors used in industrial robot safety loops?
M8 A-Coded (4-Pin):Primarily used for routing 24V DC low-voltage power supply and standard digital/analog signals to perimeter sensors, emergency stop buttons, and safety light curtains. * **M8 D-Coded (4-Pin); Specifically designed for 100Mbps Industrial Ethernet communication (e.g., EtherCAT, PROFINET) within smart robotic joints and vision-guided systems.
Q2: Can STA M8 connectors meet strict functional safety standards like PL d or Cat.3?
Yes. STA M8 connectors ensure structural integrity through a precise screw thread-locking mechanism and gold-plated contact pins. This eliminates false alarms or signal dropouts caused by high-frequency harmonic vibration, perfectly supporting hardwired safety loops to fulfill ISO 13849-1 (PL d / Category 3) requirements.
Q3: Are STA M8 connectors intermateable with legacy Western brands?
Absolutely. STA M8 circular connectors strictly comply with international standards including IEC 60947-5-2 and UL 1059. They are 100% cross-compatible, dimensionally matched, and intermateable with equivalent M8 series from brands like Amphenol, Phoenix Contact, and TE Connectivity, serving as a reliable drop-in replacement with shorter lead times.
